Einsof ES-300 provides passive optical layer functions for 4-96 DWDM wavelength mux/demux, 4-16 CWDM wavelength mux/demux, optical dispersion compensation module (DCM), optical add and drop (OADMs), splitters and combiners.
Einsof Muxponders Product Family
WDM passive modules for single or dual fiber
Complies with ITU standards, interoperable with Einsof active products portfolio, and integrates with any third party network.
Flexible Design
The ES-300 provides high granularity wavelengths add and drop capabilities and offers a large set of passive optical modules that are tailored the customers’ network requirements.
The device supports a wide range of CWDM and WDM mux/demux, OADMs and DCMs in various configurations, suitable for any type of CWDM, DWDM, OTN and ROADM network building block.
Powerful Feature Set
It interconnects seamlessly with Einsof transponder, muxponder, amplifier and ROADM product lines, and third party WDM products, to build cost- effective, high capacity DWDM and CWDM solutions.
Diagram of the Passive SolutionFeaturesApplicationsBenefits
- Passive transparent any rate, any service multiplexing
- Compliant with all optical networking products (ITU grid)

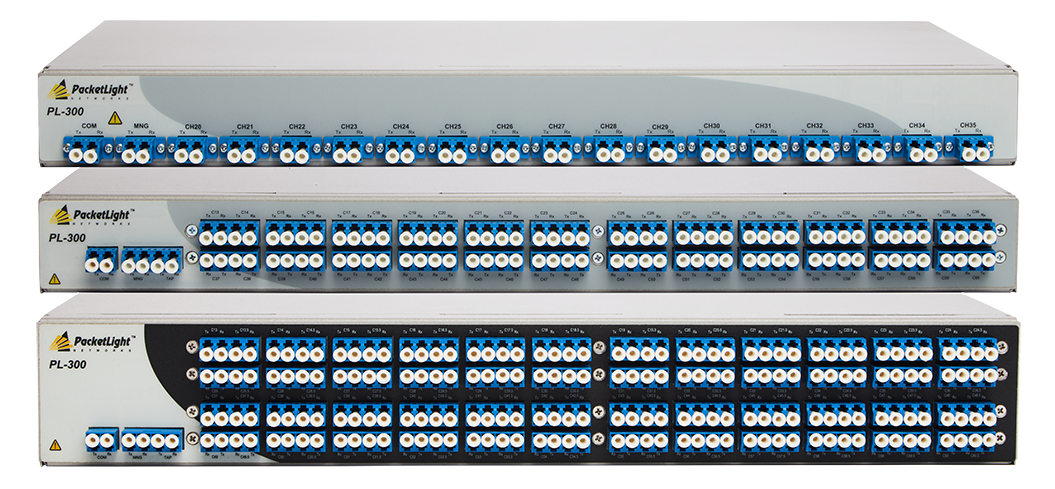

- DWDM passive optical mux/demux supported configuration: 4/8/16/48/96 channels
- CWDM passive optical mux/demux supported configuration: 4/8/16 channels
- Integrates up to four DCMs
OADM for 1-4 wavelengths - Supports single and dual fiber operation
- Integrates with all Einsof products
- Stackable solution for multiplexing multiple optical services
- Supports full C-band and L-band
- Supports 100GHz and 50GHz
- Simple installation and modularity
- Optional TAP Monitoring Port
